Description
Specifications:
1. Use for garage door, sliding door, gate,ect.
2. Easy to use, the 4 channel remote control system lets you take control of your gadgets, car, home and garage.
3. Faster copy data speed, not easy losing code, far distance.
Features
Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.
This smart copy remote control is suitable for electric door remote control, telescopic door remote control, garage door remote control.
Cloning chip types:
2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.
Note: We usually do not recommend copying a rolling code chip, because there are many uncertainties when copying a rolling code chip. When copying a rolling code chip remote control, it is not possible to determine whether the original remote control chip is an encryption chip. Therefore, we do not recommend copying the rolling code remote control.
Code cleaning method:
1. Press the unlock button and lock button at the same time(some shells are the up button and down button)
2. after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status.
3. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.
Copy method:
One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the good situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.
Package Includes:

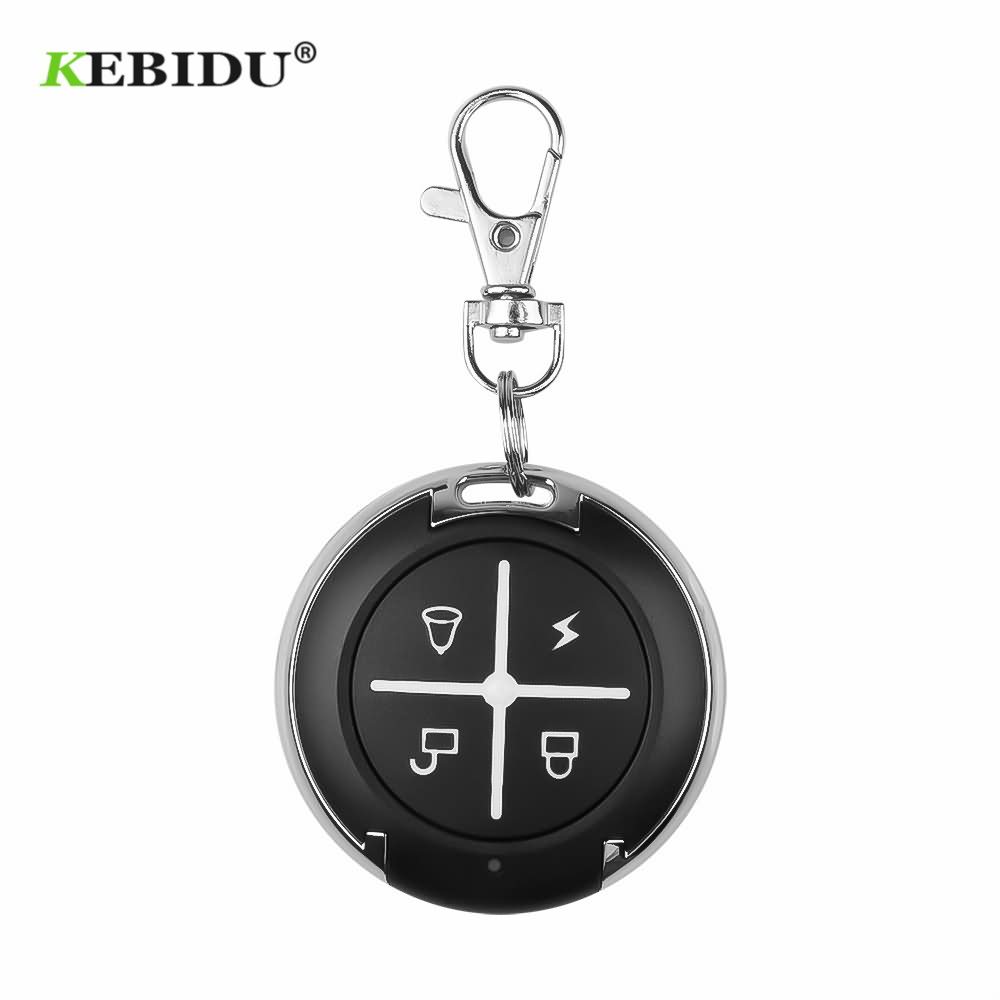

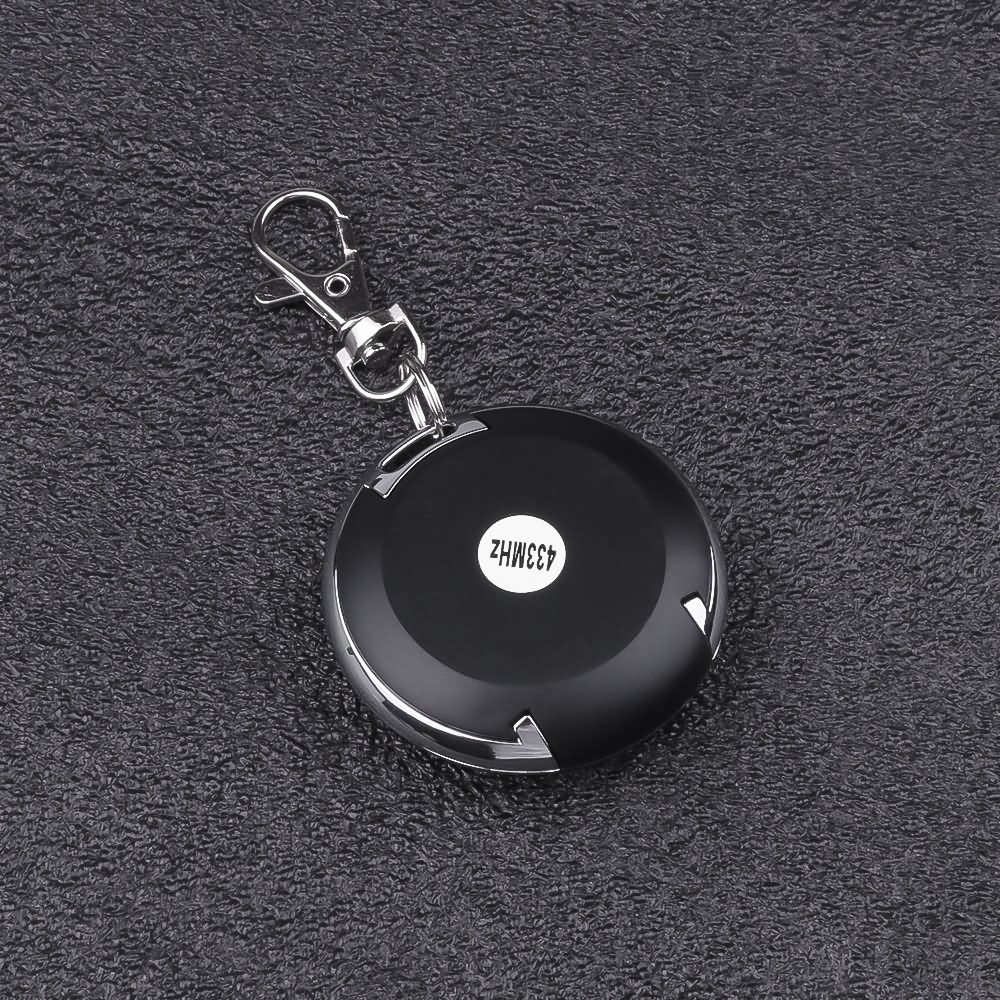

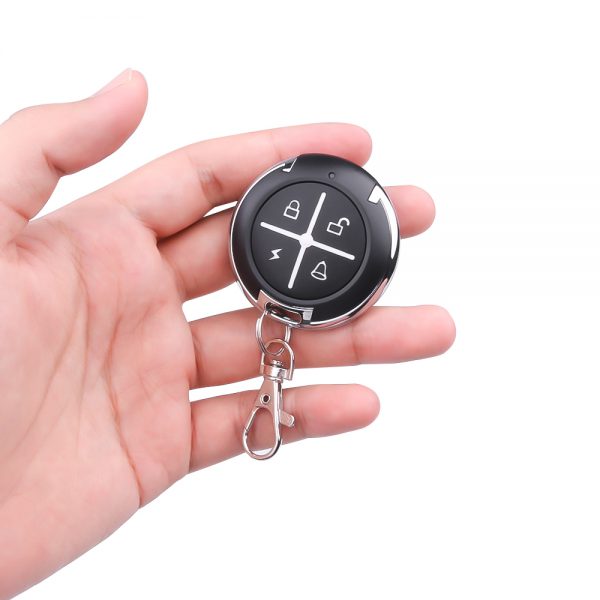

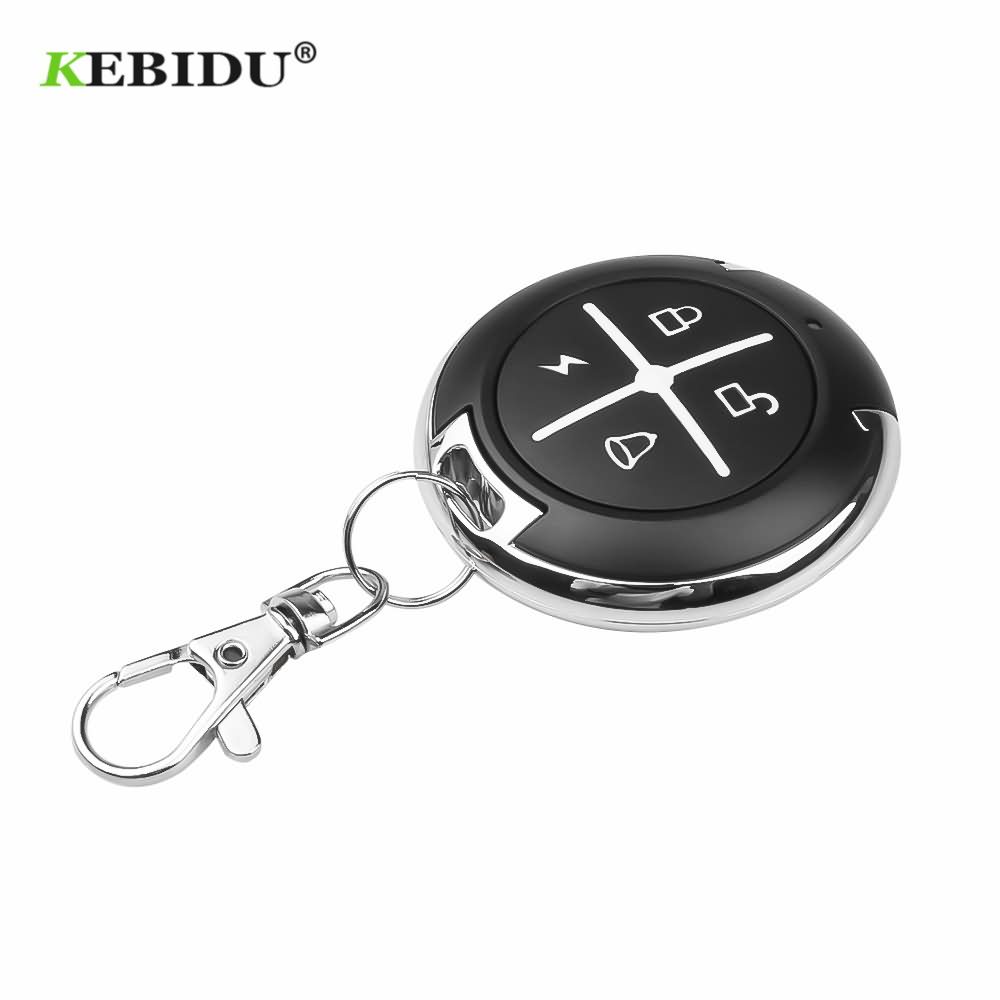

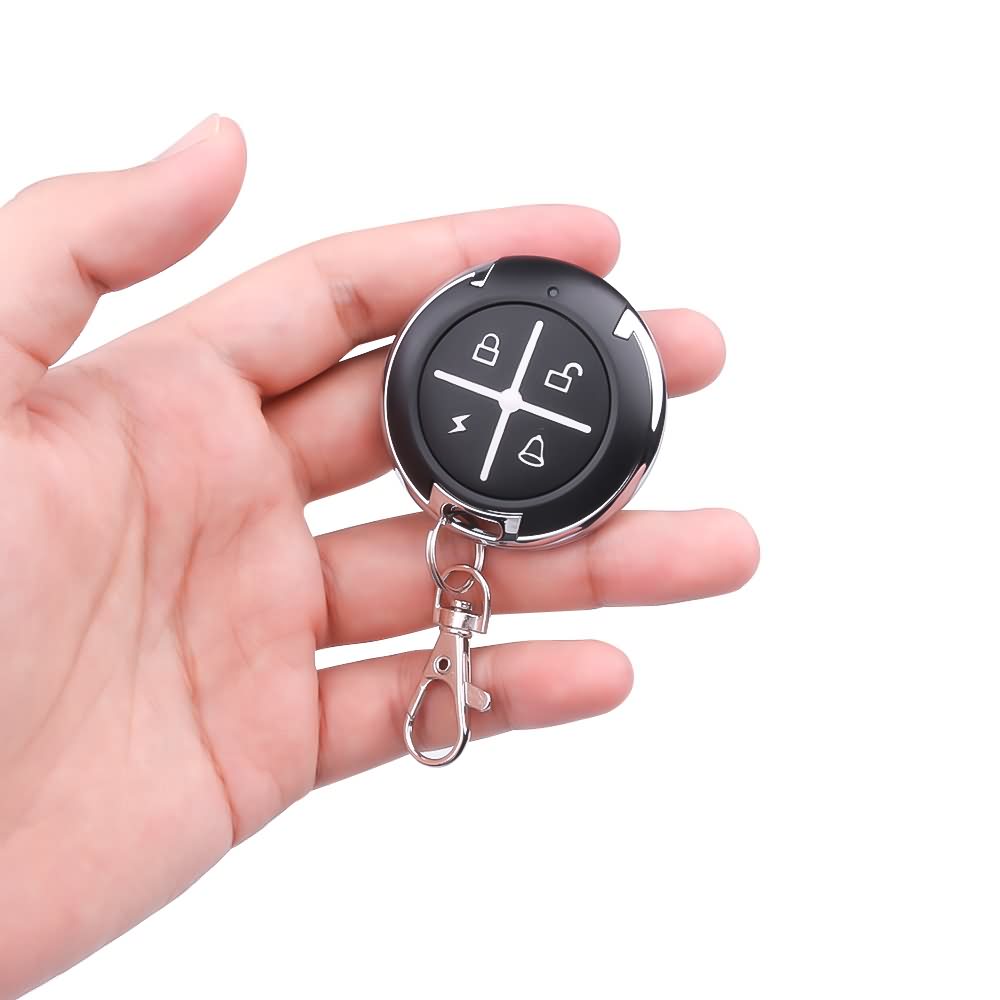

1 x 433MHZ Remote Control （built-in battery)
